Data Management

Data Management#

Girder is an open-source, scalable and extensible platform for data management. It provides core capabilities for data organization (files, items, folders, and collections); user management and authentication; access control and authorization. Girder’s plugin architecture simplifies the process of implementing custom user interface components, REST APIs, and backend capabilities. For example, the Girder Worker plugin used by Whole Tale enables distributed task execution based on Celery.

Girder is the foundation of the Whole Tale platform and ytHub, a repository of data for large-scale astrophysics simulations.

User Interface#

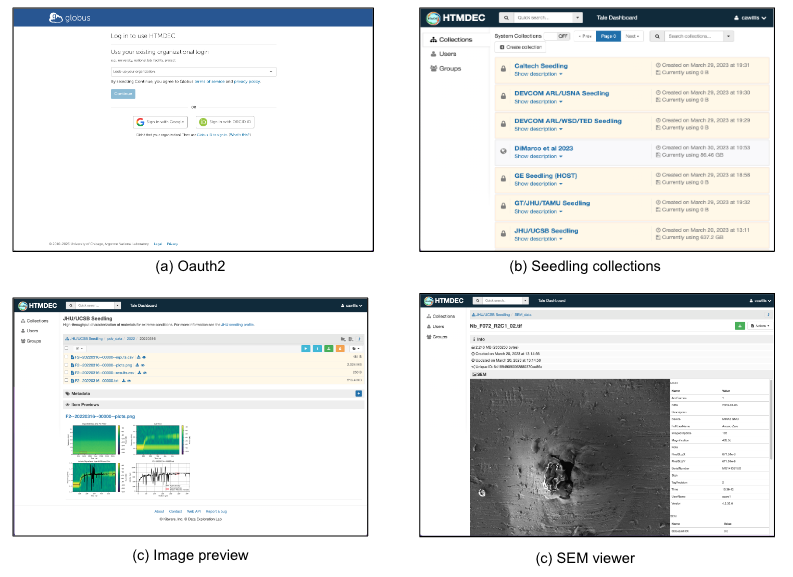

The IMQCAM data portal user interface is illustrated in Fig. 7. Users can currently authenticate (a) using their institutional credentials via the Globus Auth and the Oauth2 plugin (note: any Oauth2 provider can be configured). “”” Seedling data is organized into collections (b) which can be shared with users or groups managed within the system. “”” Specialized item preview (c) and plugins (d) can be used to enable data-specific visualizations and inspection.

../../_images/data-portal.png

Fig. 7 HTMDEC data portal user interface including (a) authentication with Oauth2, (b) seedling-specific data collectins, (c) item preview, and (b) SEM plugins.#

Architecture#

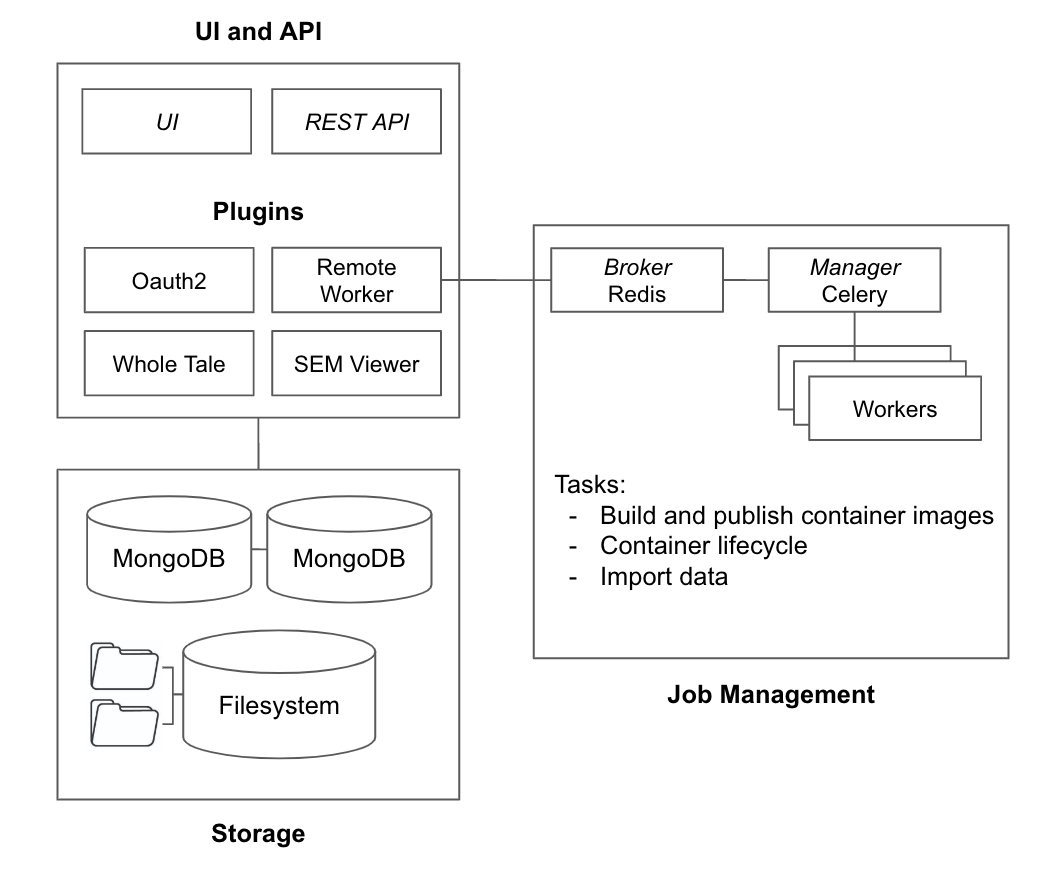

The Girder architecture is illustrated in Fig. 8. Girder supports storage and access to heterogeneous backend storage engines through a single RESTful web API. Storage options include local filesystems, MongoDB databases, and S3-compliant stores. For IMQCAM, primary data will generally be stored on a distributed filesystem with metadata and some other assets managed in MongoDB and an external graph database for GEMD data.

../../_images/girder.png

Fig. 8 Girder data management platform architecture.#

The Girder worker plugin is used for job execution. Through Whole Tale, IMQCAM uses the worker plugin to build container images, manage the container lifecycle, and import data.

Additional plugins include:

  • Oauth2: User authentication with Oauth2, currently based on Globus Authentication

  • Whole Tale: A set of plugins enabling Whole Tale capabilities
