Data Acquisition

Data acquisition through streaming provides the quickest way to close the materials design loop. More than just data transfer, streaming enables automated metadata capture, transformation, and analysis.

OpenMSIStream is an open source package that extends the Apache Kafka distributed event store and stream-processing platform. It is designed to support streaming of experimental and computational research data and simplify the process of configuring streaming systems aligned with common practices for instrument-centric data collection and analysis. OpenMSIStream runs on Linux, MacOS, and Windows and connects to different filesystems and data stores.

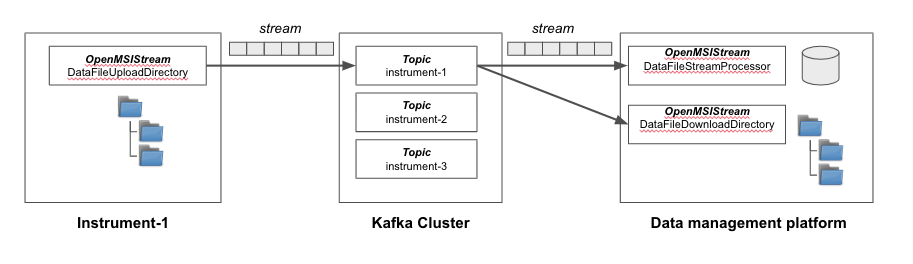

Fig. 6 Overview of OpenMSIStream

Kafka is a publish-subscribe based messaging system with four main concepts:

• Broker: Arranges transactions between producers and consumers

• Topic: User defined category or feed-name where data is stored and published

• Producer: Applications that put data into topics

• Consumer: Applications that read data from topics

OpenMSIStream implements producers and consumers specific to materials research practices including DataFileUploadDirectory, DataFileDownloadDirectory, and DataFileStreamProcessor.

Example

For the laser shock PDV analysis at JHU, a DataFileUploadDirectory service runs on the PDV system. Researchers copy datafiles to a specific directory and they are streamed to a Kafka topic. A set of DataFileStreamProcessors run on the HTMDEC platform to (1) acquire and organize the raw waveform data and (2) run the PDV analysis software for the anlaysis of spall signals.
